Blue Sea 5023 ST-Blade Battery Terminal Mount Fuse Block [5023]

Blue Sea 5023 ST-Blade Battery Terminal Mount Fuse Block [5023]

Blue Sea 5023 ST-Blade Battery Terminal Mount Fuse Block [5023]

Regular price $42.99 Sale price $28.00 Save $14.99
/
  • Additional worldwide percentage off at checkout when a Cyclone Sale hits.
  • Fast Delivery
  • Carbon neutral
  • Secure payments
  • In stock, ready to ship
  • Inventory on the way

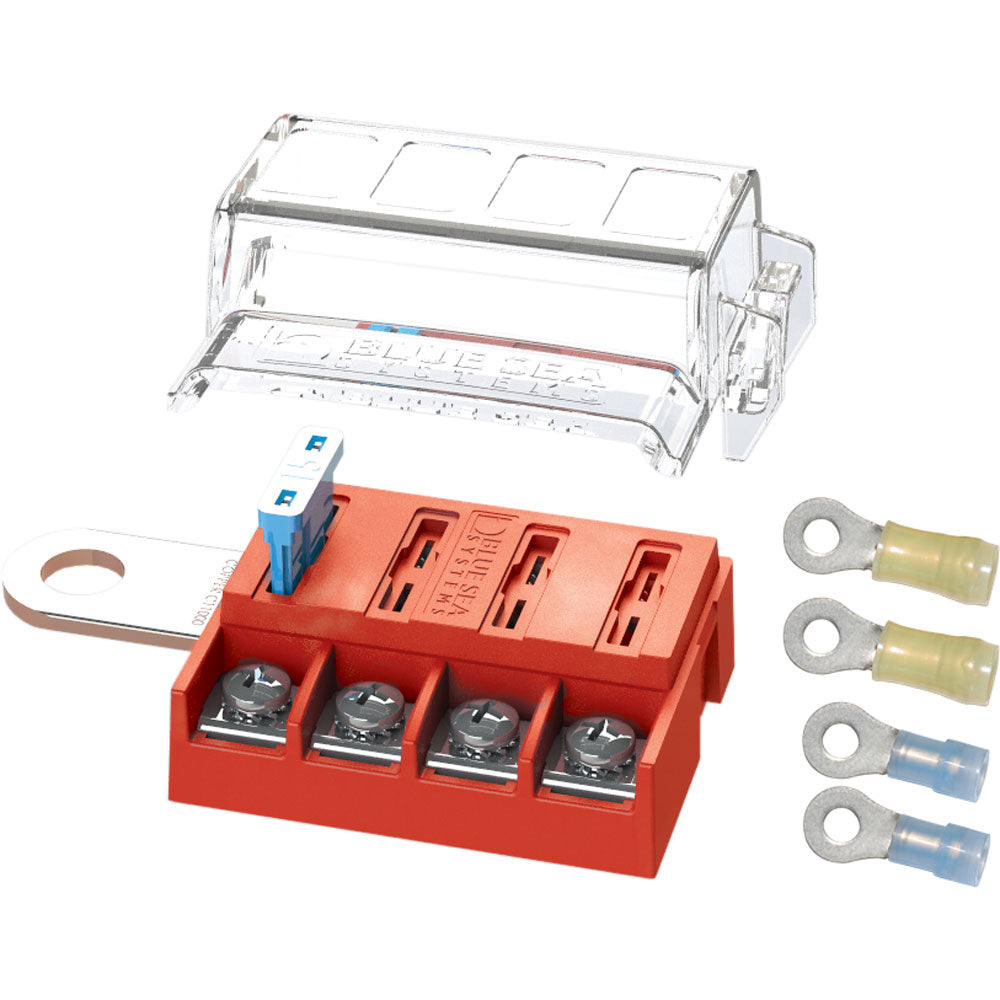

ST-Blade Battery Terminal Mount Fuse Block

Features:

  • Easy to install 4 ATO/ATC fused circuits
  • Mounts on the battery terminal stud
  • Screw terminals for securing wires
  • Four Nylon insulated ring terminals included
  • Insulating cover included
  • Accepts Small Format Circuit Labels
  • Includes 1 fuse

Specifications:
  • Circuits: 4
  • Maximum Amperage: 100A per block, 30A per circuit
  • Maximum Voltage: 32V DC
  • Mounting:tClearance for 3/8" [M10] stud
  • Screw Terminal Type: #8-32 Screws with captive star lock washer

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Fuse Type: ATO/ATC
  • Type: Fuse Blocks
  • Box Dimensions: 2"H x 5"W x 8"L WT: 0.3 lbs
  • UPC: 632085050238

Quick Guide (pdf)
