Egis MIDI Fuse Block w/Black Cover [3810]

Egis MIDI Fuse Block w/Black Cover [3810]

Egis MIDI Fuse Block w/Black Cover [3810]

Regular price $14.70 Sale price $12.00 Save $2.70
/
  • Additional worldwide percentage off at checkout when a Cyclone Sale hits.
  • Fast Delivery
  • Carbon neutral
  • Secure payments
  • Low stock - 4 items left
  • Inventory on the way

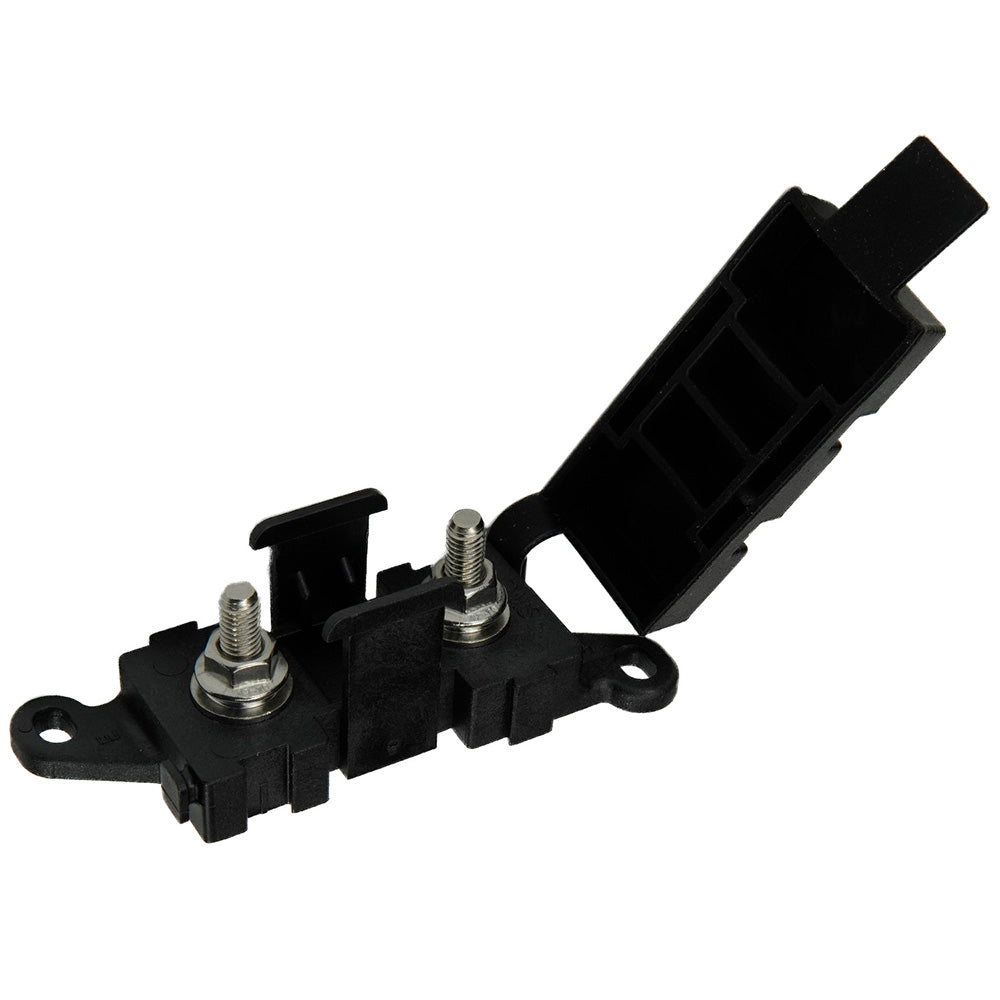

MIDI Fuse Block with Black Cover

Features:

  • Designed for Harsh Environments with a high-temperature composite base and stainless-steel stud and nut hardware for maximum protection from corrosion.
  • 58 Max Vdc Rating easily supports 12, 24, 36, and 48 nominal Vdc systems.
  • Flexible Protective Cover ensures full 360-degree access for cables/terminals to attach to fuse studs, while preventing inadvertent short circuits.
  • Serrated Flange Lock Nuts improve resistance to cable terminal loosening in high-vibration environments.
  • Stackable Side by Side design via interlocking dovetail features in the composite base.
  • Supports Common Input Busbars when stacked side-by-side due to longer input stud lengths.
  • Wire Tie Slots in Base allow optional secure tie-wrap mounting.

Specifications:

  • Type: Fuse Blocks
  • Box Dimensions: 2"H x 4"W x 4"L WT: 0.1 lbs
  • UPC: 850053879951

Brochure (pdf)
