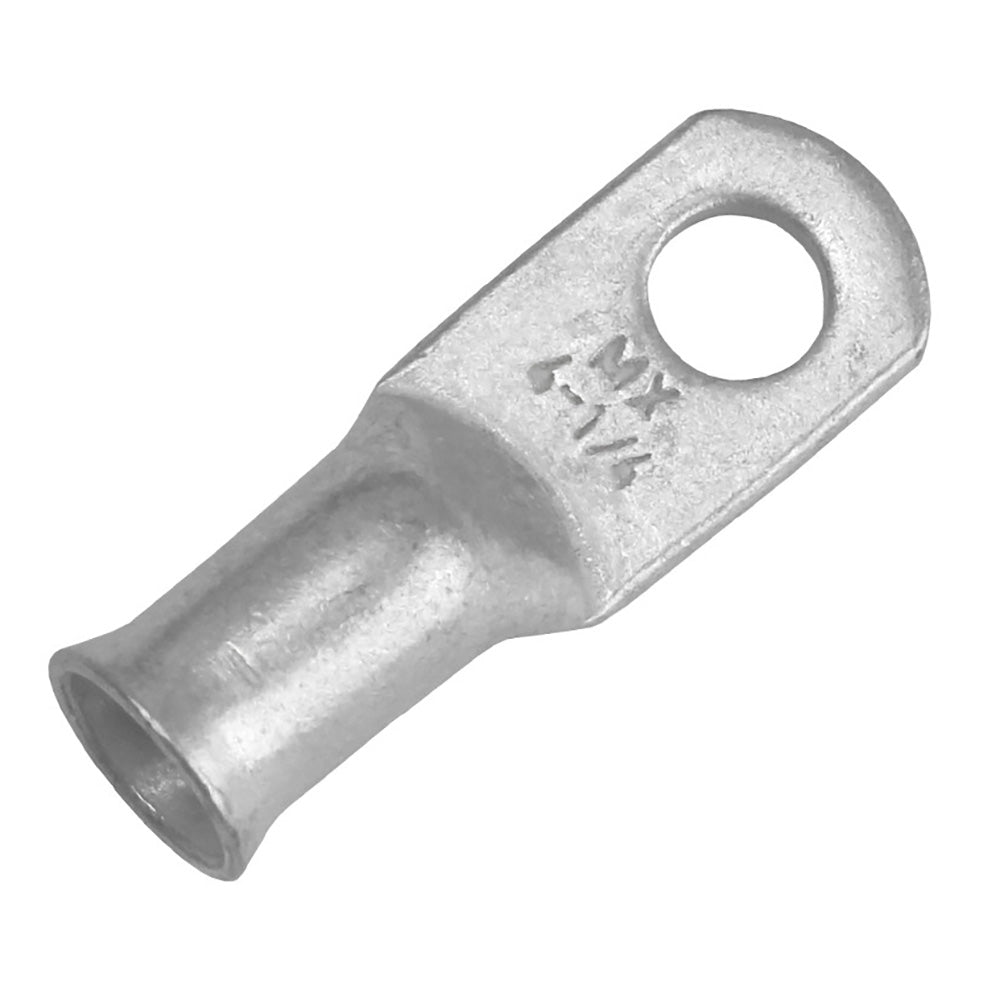

Tinned Lug 4 AWG - 1/4" Stud Size - 2 Pack

Lugs are connection points that are created by crimping the connector onto a wire or cable. This connection, commonly referred to as a cold weld, creates a solid, long-lasting connection. Pacer lugs are made from 100% pure copper for high conductivity. This copper is fully annealed to prevent cracking while being crimped and while in service. These terminals are also tin-plated to prevent corrosion and many of these lugs are general-purpose seamless electrical terminals. They are commonly used with battery cables.

Features:

• Tin-plated copper with no exposed seams offering 100% long-term conductivity
• Tinned copper
• Highly durable
• Multitude of sizes
• Easily terminated
• Infield applications
• Long-lasting

Compliances:

• E.T.P. (Electrolytic Tough Pitch) CDA-110
• ASTM-B-152 Copper
• RoHS Compliant
• CSA Approved
• UL Approved

Specifications:

• Wire AWG: 4 AWG
• Stud Size: 1/4"
• Length (inch): 1.500"
• Width (inch): 0.531"
• Clearance (inch): 0.406"
• Package Size: Two included

Specifications:

• Gauge: 4 AWG
• Heat Shrink: No
• Package Qty: 2
• Post Size: 1/4"
• Type: Lugs
• Box Dimensions: 1"H x 2"W x 4"L WT: 0.01 lbs
• UPC: 840248222570
