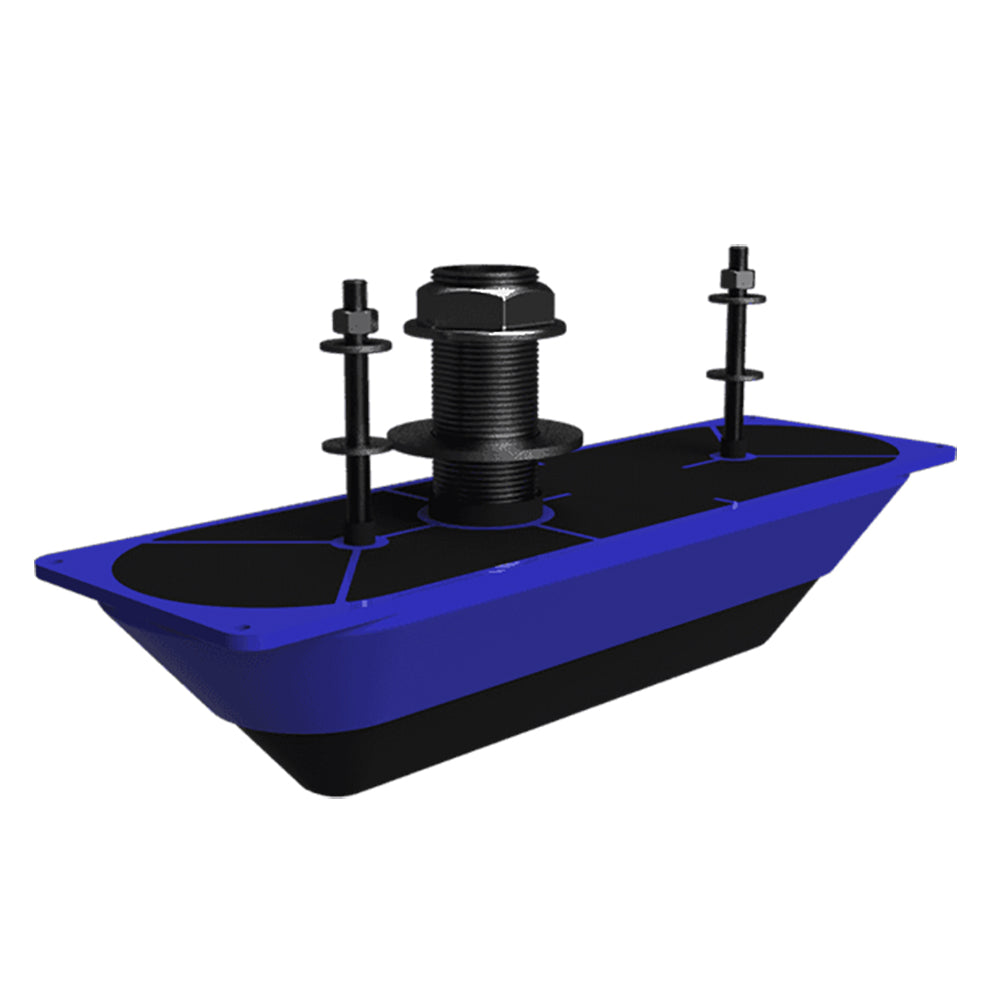

StructureScan 3D® Stainless Steel Thru-Hull Transducer - Single

Lowrance and Simrad Yachting announce the release of new thru-hull StuctureScan 3D® Stainless Steel transducer for the StructureScan 3D® Sonar Imaging product line, providing more range and greater resolution.

• As with transom-mount StructureScan 3D® transducers, the thru-hull Stainless Steel version deliver extreme target detail, bottom discrimination plus bait and game fish separation at depths to 300'(92M) and a wider range of 600'(183M) Left & Right coverage.
• These Stainless Steel StructureScan 3D® transducers from Airmar® are available only from Navico exclusively for StructureScan 3D® systems. These sturdy, Stainless Steel StructureScan 3D® transducers are resistant to the electrical forces in the environment where it will be used.
• Each feature a low-profile design that minimizes drag; provide exclusive 3-channel beam, port and starboard SideScan plus DownScan Imaging™ & 3D Imaging technology; an optional high-performance fairing is avaliable (000-13581-001) give you greater StructureScan performance at speeds; and feature a 30'(9M) transducer cable.
• For boats with steep or variable deadrise hull angles, consumers must purchase the StructureScan® 3D Stainless Steel Thru-Hull Pair (000-13560-001).

Specifications:

• Pins: 12
• Mounting Style: Thru-Hull
• Imaging: Down/Side
• Chirp: No
• Temperature: Yes
• Cable Length (Feet): 25'
• Speed Included: No
• Box Dimensions: 5"H x 12"W x 16"L WT: 7.6 lbs
• UPC: 9420024157701
