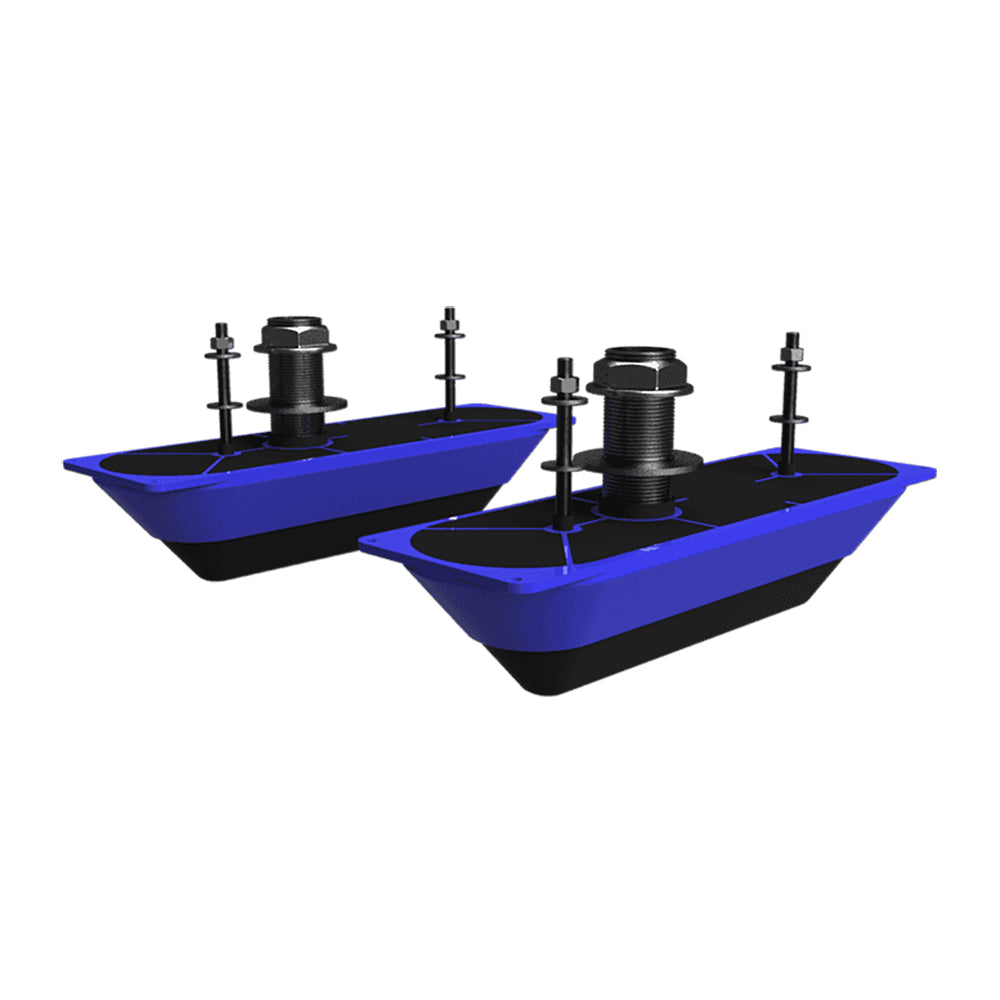

StructureScan 3D® Stainless Steel Thru-Hull Transducer - Pair

The Dual thru-hull StuctureScan 3D® Stainless Steel transducer for the StructureScan 3D® Sonar Imaging product line, providing more range and greater resolution.

• These transducers are designed for boats with steep or variable deadrise hull angles, for seamless display of SideScan and DownScan and 3D Imaging.

• As with transom-mount StructureScan 3D® transducer, the Dual thru-hull Stainless Steel version deliver extreme target detail, bottom discrimination, plus bait and game fish separation at depths to 300'(92M) and a wider range of 600'(183M) Left & Right of coverage.

• These Dual thru-hull Stainless Steel StructureScan 3D® transducers from Airmar® are available only from Navico exclusively for StructureScan 3D® systems. These sturdy, Dual thru-hull Stainless Steel StructureScan 3D® transducers are resistant to the electrical forces in the environment where it will be used.

• Each feature a low-profile design that minimizes drag; provide exclusive 3-channel beam, port and starboard SideScan, DownScan Imaging™ and 3D Imaging technology; an optional high-performance fairing is avaliable (000-13581-001) give you greater StructureScan performance at speed; and feature a 30'(9M) transducer cable.

Specifications:

• Pins: 9
• Mounting Style: Thru-Hull
• Imaging: Down/Side
• Chirp: No
• Cable Length (Feet): 25'
• Speed Included: No
• Temperature: Yes
• Box Dimensions: 12"H x 13"W x 16"L WT: 15.5 lbs
• UPC: 9420024157718
