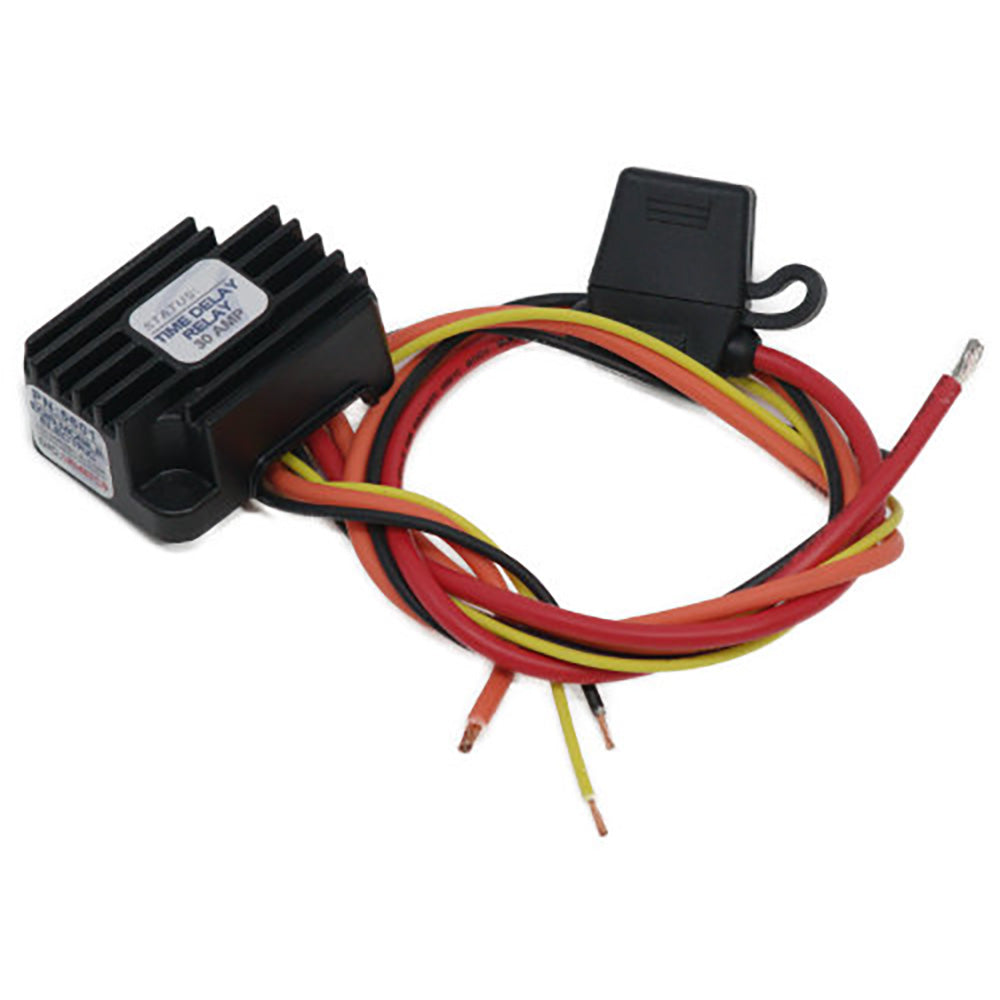

PT Series 30A Time Delay Relay - 24V

Prevents dead batteries from add-on equipment, maximizing operational readiness and saving maintenance costs.

Delivers power to equipment after engine off or at the end of shift (video downloads), automatically timing off and optionally if battery voltage is low.

Protects sensitive on-board electronics via under-voltage and over-voltage shutdown.

Features:

• Ultra-Low Power Draw eliminates vehicle downtime due to dead batteries. Lowest off-state current draw (1.3 mA).
• Flexible Control Options via Ignition Key, alternator voltage sense, or both.
• Diagnostic Feedback via on-board multi- color LEDs
• Meets Stringent OEM Standards for electrical transient self-protection
• Adjustable OFF Time Delay: 15 minutes to 8 hours. 5-second test mode setting for quickly verifying installation.
• Bullet-proof Construction: Sealed unit, high-temperature materials allow mounting anywhere on the vehicle. Integrated thermal overload protection
• 4 Year Industry-Leading Warranty

Specifications:

• Type: Electric
