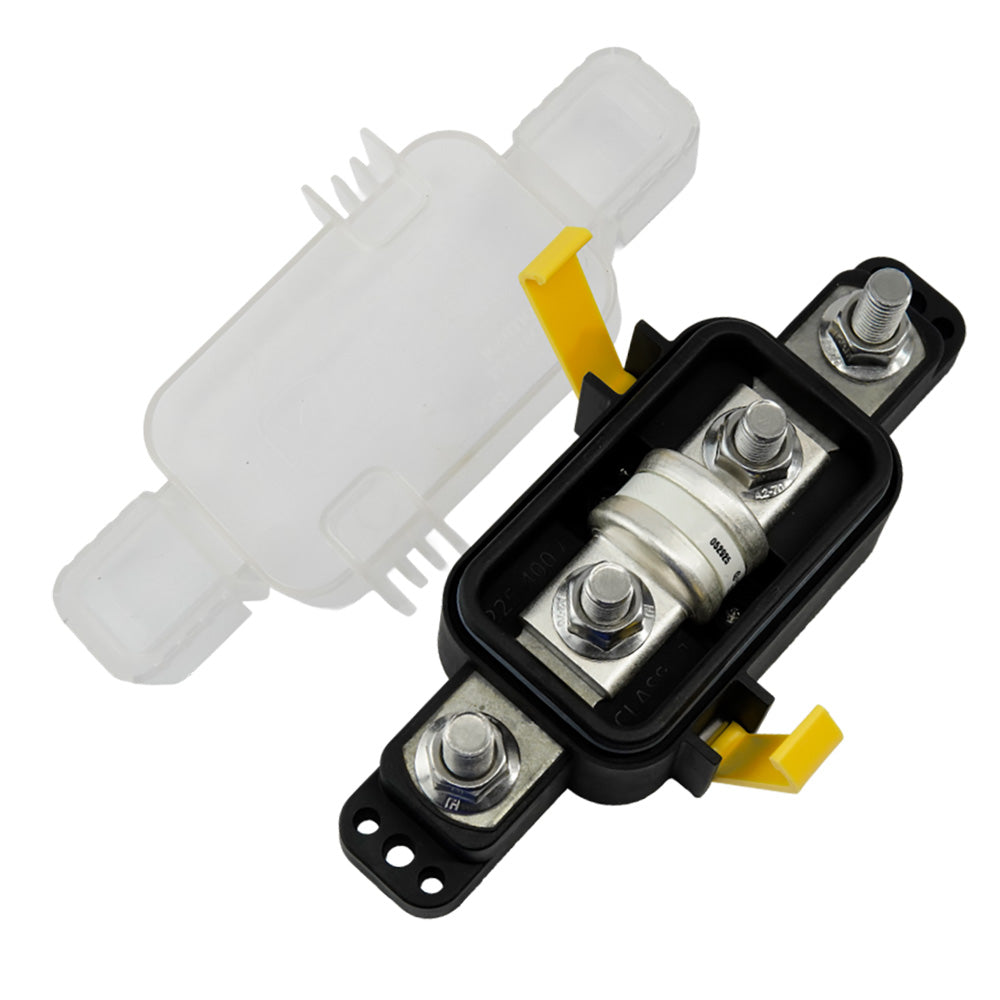

Class T Fuse Block 225-400 A - Sealed

Applications/Problems This Solves:

  • Separate Stud Connections for Cable Mounting allow heavier gauge cables and their terminals to feed in and out of the fuse, which would otherwise land on the fuse tab itself.
  • Ignition Protected to support installation in potentially hazardous gaseous environments such as LPG or on gas boats.

Features:

  • Tin-plated copper busbar delivers superior electrical performance with minimal voltage drop.
  • Stainless Steel Self-Locking Hardware ensures robust connections & long-term connection reliability.
  • Bulletproof construction from glass-filled nylon delivers the highest longevity in demanding environments.
  • 4 Year Warranty

Specifications:

  • Maximum Amperage: 225-400A
  • Max Voltage: 80 VDC
  • Ingress Protection Ratings: IP66, IP67, IP6K9K
  • Mounting Holes: 4x #10 (M5) & 2x 1/4" (M6)
  • Mounting Screw Max Torque: 50 in-lbs (5.5 N-m)
  • Busbar Material: Tin-Plated Copper
