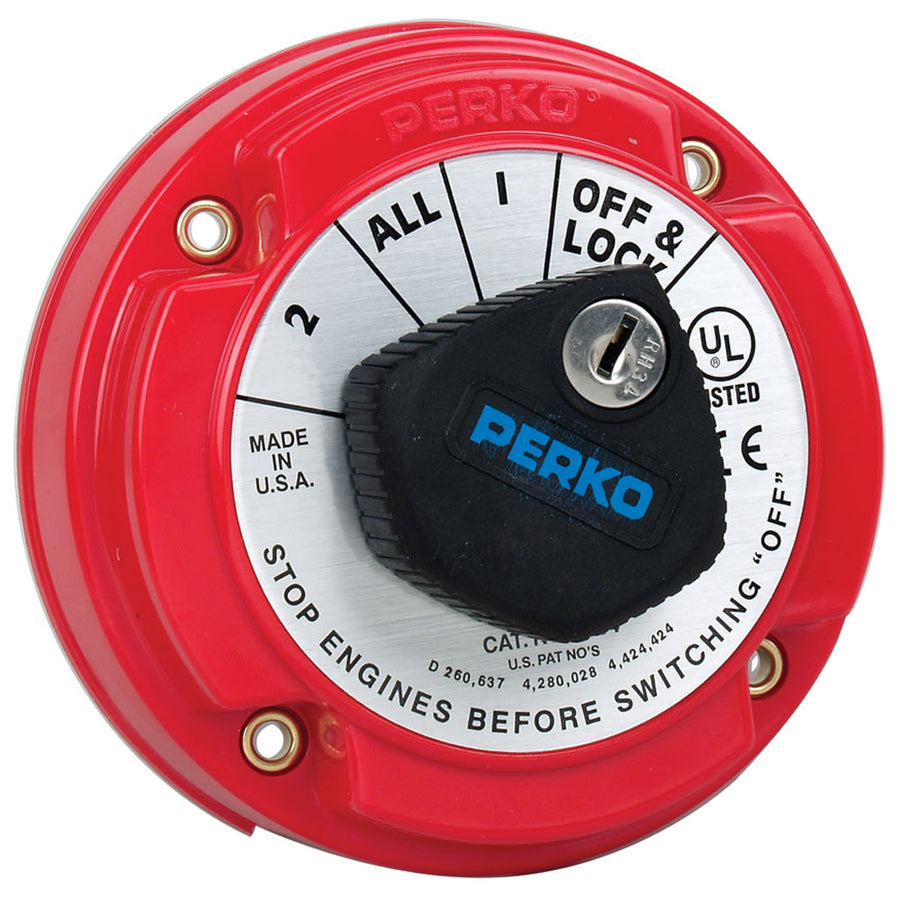

Name: Perko 8504DP Medium Duty Battery Selector Switch w/Alternator Field Disconnect & Key Lock [8504DP]
Brand: Perko
SKU: CS-33117
Price: 83.0 USD
Availability: InStock

Perko 8504DP Medium Duty Battery Selector Switch w/Alternator Field Disconnect & Key Lock [8504DP]

Price Save $59.53

Additional worldwide percentage off at checkout when a Cyclone Sale hits.

Fast Delivery

Carbon neutral

Secure payments

In stock, ready to ship
Inventory on the way

Medium Duty Battery Selector Switches

Diameter: 5-1/4"
Depth: 2-5/8"
Polycarbonate Body with Brass Terminals
Ignition Protected
For use with 6 to 32 Volt Marine Electrical Systems
Capacity - 250 AMPS Continuous, 360 AMPS 5 Mins. Intermittent
Terminal Stud Size: 5/16"
When used with Non-Unitized Alternators, these models will interrupt the field current (reducing the possibility of damage) if turned "OFF" with the engine running.

Specifications:

AFD: Yes
Lockable: Yes
Positions: 2
Continuous Amperage: 250a
Box Dimensions: 3"H x 6"W x 8"L WT: 0.95 lbs
UPC: 085226560026

Quick Guide (pdf)
